Mirror systems for Material Handling
Mirror systems for forklifts and material handling equipment should be as small as possible while providing as large a field of vision as possible. Also they should offer flexible installation options. MEKRA Lang mirror systems 1009 (for larger vehicles) and 1010 (for smaller vehicles) meet these requirements exactly. Intelligent attachment options allow installation on any vehicle. We offer a wide variety of options from manually adjustable to electrically adjustable and heated models.
Mirror systems
COMPACT MIRROR 1010
| Glass-Size |
169 x 277 mm (W x H) |
| Curvature Radius |
1200 mm |
| Mounting-Side |
right and left side |
| Heating |
unheated or heated 12 V |
| Adjustment |
manual |
| Adjustment-Range |
up / down: > ±9° - left / right: > ±9° |
| Mounting-Interface |
Clamp for 14-20 or 28-22 mm tube diameter |
| On-Board Power Supply Connection |
- |
| Material |
shock-proof ASA plastic, black, UV resistant |
MODULAR MIRROR 1009
| Glass-Size |
Main mirror 225 x 286 mm (W x H)
|
| Curvature Radius |
Main mirror 1200 mm
|
| Mounting-Side |
right and left side |
| Heating |
unheated or heated 12 or 24 V |
| Adjustment |
manual or electrical 1 or 24 V |
| Adjustment-Range |
up / down: > ±8° - left / right: > ±8° |
| Mounting-Interface |
Clamp for 18-22 or 28 mm tube diameter |
| On-Board Power Supply Connection |
2- or 6-lead flange socket,
|
| Material |
shock-proof ASA plastic, black, UV resistant |
Mounting systems
| Nosing |
500 mm |
| Pipe-Diameter |
22 mm |
| Mounting-Side |
rechts oder links, Haltesystem fest verschraubt |
| Adjustment |
manuell, Rastwinkel alle 30° |
| Collapsingmoment |
25 Nm |
| Mounting-Interface |
Haltebock |
| Wiring |
offene oder verdeckte Kabelführung möglich,
|
| Material |
Alu-Druckguss, Stahlrohr, pulverbeschichtet, schwarz |

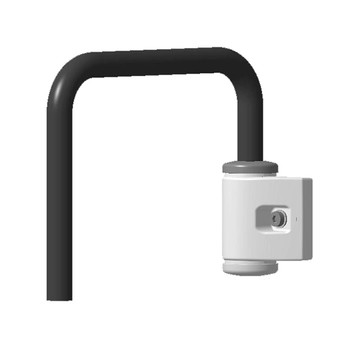

MIRROR MOUNTING SYSTEM 1016
| Pipe-Diameter |
22 mm |
| Mounting-Side |
links |
| Material |
Stahlrohr, pulverbeschichtet, schwarz |
| Maße |
336 x 136 x 0 mm |
| Brottogewicht |
1,06 Kg |
You will find a distributor near you in our extensive network of authorized dealers:
